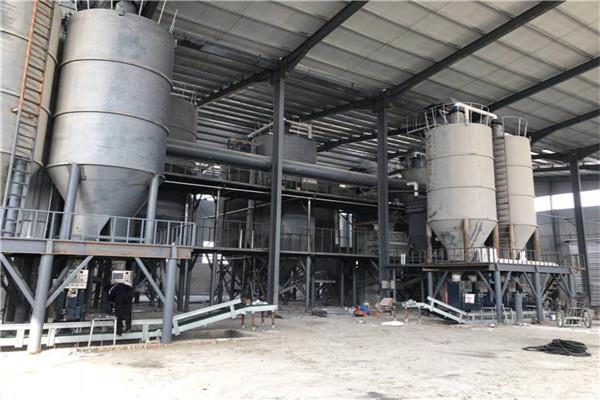

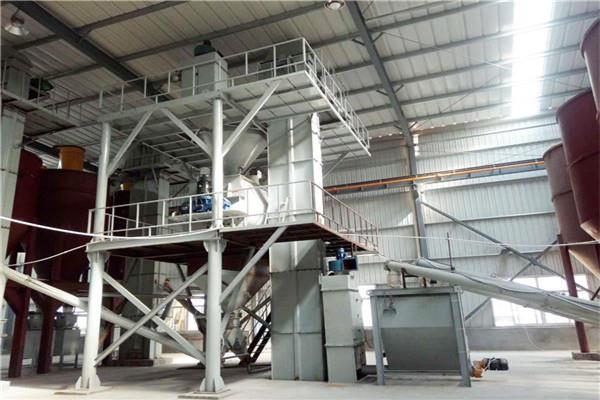

The tank of the automatic dry mortar equipment adopts a tower layout, and the management system is implanted with new modular management technology, which greatly improves the human-computer dialogue function and the degree of automation. According to different configurations, the output of this e
The tank of the automatic dry mortar equipment adopts a tower layout, and the management system is implanted with new modular management technology, which greatly improves the human-computer dialogue function and the degree of automation. According to different configurations, the output of this equipment can reach 35,000 tons per year.
The equipment is mainly composed of a raw material storage system, a batching weighing system, a conveying system, a mixing system, a gas phase balance system, a packaging system and a dust removal system. The main control system issues production instructions based on the selected process formula. The system automatically extracts raw materials from the storage bin according to the ratio. After the raw materials are weighed, they enter the mixing bin and the gravity-free mixer in turn to achieve rapid mixing operations. After meeting the mixing accuracy requirements, the finished mortar is transported to the finished product bin with secondary mixing function and enters the automatic filling process. The newly designed automatic packaging machine performs timed and quantitative filling operations as required, which greatly improves the output efficiency. The packaged finished products are sent to the finished product area for stacking and waiting to be shipped.
Produced on automated production lines, these materials are transported to
their intended use by brick transport vehicles and stored in brick tanks until
ready for use. Because impurities in the raw materials are completely removed
during the production process and meet standards, coupled with the accurate
metering of cement and the proper addition of modifiers, the quality of the
mortar is improved. Premixed mortar and dry-mixed mortar ensure building quality
and prevent quality issues such as shelling, hollowing, and tumbling during
construction. In a world where on-site mortar mixing is prohibited (traditional
mortar 1. contains impurities, 2. requires accurate metering, and the raw
material mix ratio is arbitrary; 3. mixing is uniform, which can easily lead to
excessive dispersion in mortar quality and cause construction quality problems;
4. produces benzene, wastes raw materials, and produces high levels of dust and
noise), premixed mortar batching plants will play an increasingly important
role.
Model | Theoretical yield (t/h) | Annual output (T/300 days/24h) | Host model | Host power (KW) | Total volume(m?) | Loading factor |
30 tons per hour dry mix mortar equipment | 30 | 30万 | wz-6c | 45 | 6 | 0.4-0.6 |
1. Civilized construction at the construction site is beneficial to the environment.
2. High mixing uniformity ensures construction quality.
3. Utilizes waste and protects the environment (recycling of fly ash, slag, and other waste materials).
4. Supply is available on-demand and anywhere, allowing you to mix as much as needed, eliminating waste.
5. The high-performance mortar produced can be made into high-performance mortar according to specific requirements.
6. Suitable for mechanized construction, it improves work efficiency and reduces construction costs.
7. It can be supplied to the building materials market, meeting the needs of the interior decoration market.
